The online monitoring of user activity within Oracle Applications is achieved via the Monitor Users form (Form Name: FNDSCMON.fmx). The navigation path within the Sysadmin responsibility is Security > User > Monitor. In order to activate the capability of this form one has to select an appropriate option for the profile option Sign-On: Audit Level Profile Option. The available options are: -

NONE - No monitoring.

USER - Will only show you a list of logged in users.

RESPONSIBILITY - Will show you the user logged in and the responsibility they are using.

FORM - Will go down to the lowest level of detail and show you the User, Responsibility and Form being accessed.

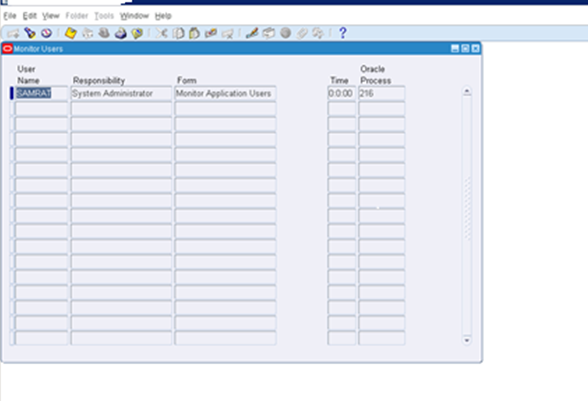

The screen shot below indicates what you would see if you had chosen the FORM option for the profile option in question.

Navigate to Security: Users > Monitor

Click (CTL + F11) keys to display the result.

This is a very useful screen since it tells you exactly which users are logged in and what are they doing in the system at any point in time. One may check this screen before bouncing or restarting the system to make sure all users are logged out.

It is a good practice to set the Sign-On: Audit Level profile option to “Form” since it gives the most detailed information above other choices but it will impact the system performance since it collects a lot of information, so you have keep that in mind.

Viewing Monitoring Reports about Users and their activity:

Depending on what audit level you have selected for the profile option under discussion you may also generate various reports as indicated below: –

Sign-On Audit Concurrent Requests: View information about who is requesting what concurrent requests and from which responsibilities and forms.

Sign-On Audit Forms:View who is navigating to what form and when they do it.

Sign-On Audit Responsibilities: Used to view who is selecting what responsibility and when they are doing it.

Sign-On Audit Users:Used to view who signs on and for how long.

Sign-On Audit Unsuccessful: Show audit information about unsuccessful logins to Oracle Applications.

To view any of the given reports monitoring user activity use following steps:

Navigate to System Administrator Responsibility > Concurrent > Requests Or from the Menu Bar go to View > Requests

Choose Submit New Request > Single Request

Select report you want from the 4 requests given above.

Click Submit > Find

Select report you choose and click View output button to view the report.

Notifying Users of Unsuccessful Logins to their accounts:

Sign-On Audit can track user logins and provide users with a warning message if anyone has made an unsuccessful attempt to sign on with their application username since their last sign-on. This warning message appears after a user signs on. You do not have to audit the user with Sign-On Audit to use this notification feature.

To inform users about unsuccessful logins to their account, you can set the “Sign-On: Notification” profile option to Yes. To do that from System Administrator Responsibility > Profile > System > Find the profile option “Sign-On: Notification” and change its value to Yes.

Page access tracking:

Page Access Tracking in Oracle Applications Manager reports aggregate data for OAF- and JTF-based applications, with Sign-on Audit data gathered for Forms-based applications. Consequently, you can view usage flow paths that span all three technology stacks.

Page Access Tracking allows administrators to track application usage statistics and perform Web site traffic analysis, aggregate data about user flows as well as drill down to a particular user session.

Page Access Tracking transparently captures application-rich context information for every user click. In terms of performance, the data capture has negligible overhead.

Enable page tracking.

Go to OAM>Site Map > Monitoring > Applications Usage Reports > Page Access Tracking and Sign-on Audit Configuration>>Click on Configurations

And then at the bottom, click on apply. Next Migrating Page Access Tracking Data

Page Access Tracking data is logged in the database in a staging area. It needs to be migrated and mined before the UI reports are refreshed. How frequently Page AccessTracking Data needs to be migrated and mined depends on how up-to-date the UI reports need to be. Generally speaking, the recommendation is to run the concurrent program at least once a day (for example at midnight) for the reports to be relatively up to date.

The "Page Access Tracking Data Migration" can be scheduled either in Oracle Forms, or within the OAM responsibility.

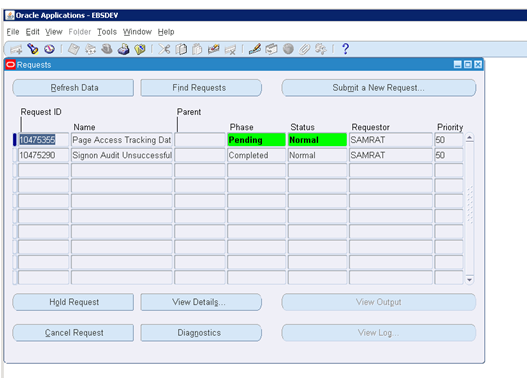

Schedule the concurrent program "Page Access Tracking Data Migration" using Concurrent Manager:

After the Concurrent Program completes, you should be able to view the latest data reports and statistic

To view the output:

Click on the respective pointers to know more about in details. For example, I clicked on one of the pointers under Responsibility for 16^th Jan 2017

We can also click on the respective pointers to drill down further.

Debug Logging (Unexpected Logging)

The Oracle E-Business Suite Debug Log is used for a variety of purposes. As the name suggests, it is often used to diagnosing and debugging problems encountered in Oracle E-Business Suite code. This log can also assist with diagnosing security problems and detecting security attacks. It can also be leveraged for post-attack / forensic analysis.

The debug log is documented in the Oracle E-Business Suite Maintenance Guide - Logging. The current recommendation in this chapter is to set this to “UNEXPECTED”. This is important from a security auditing perspective, since this is the level at which many of the security errors are written out to the log.

The default configuration (and the current recommendation) for Debug Logging is set to log information to the database. This makes it easier to correlate and maintain logs in a multi-tier application environment.

The Debug Logging mechanism also supports logging to the file system using the following profile:

AFLOG_FILENAME

FND: Debug Log Filename

"/path/to/apps.log"

Customers may want to consider enabling logging on the file system, as there are some security benefits to maintaining the log on the file system. File system logging will generally provide better protection against an attacker being able to modify logging records via a SQL injection attack.

Example for collecting OAF Log files:

Enable Diagnostics -- Set User (should use same user to reproduce the issue) level system profile values as follows:

FND: Debug Log Level = Statement
FND: Debug Log Enabled = Yes
FND: Debug Log Module = %
FND: Debug Filename = /tmp/trace.log - Should have proper write permissions.
FND: Diagnostics = Yes

Step 2

The Diagnostics button should now be visible on the page - next to Close window/Preferences/Help/Personalise Page

1. Obtain the Trace File

a: Click on the Diagnostics button and choose "Show Log".
b: Under Categories, verify all checkboxes are checked; also, enter "%" for Module.
c: Under Sequence, verify "Other" is checked, and "%" is entered in the field next to it.
d: The Search should return all logged statements in the database.
e: Click on the Export button to export the log.

Please upload the trace file obtained to Oracle support

2. From Filename specified in profile FND: Debug Filename.

3. From fnd_log_messages

After reproducing the issue we can also get the logs from database table
fnd_log_messages this way.

Run this query with login id in place of <USER_NAME> in query to know the USER_ID of the person logging in.

select USER_ID from FND_USER where USER_NAME like '<USER_NAME>'

Before logging in (after setting the profiles) run the query below with user_id in place of <USER_ID> and check the count.

   select session_id, count(*)
   from fnd_log_messages
   where user_id = <USER_ID>
   group by session_id;

After logging in run the query again and check that the count has increased.
Also get the SESSION_ID of the present login session from the new row.

Use the USER_ID and SESSION_ID to query from fnd_log_messages or run the spool script to get the log file log.lst

set termout off
set pages 30000
set lines 4000

col MESSAGE_TEXT format a3950
col TIMESTAMP format a22
col LOG_LEVEL format a2

spool log.lst

select
T1.LOG_LEVEL
||'^'|| to_char(T1.TIMESTAMP, 'dd-mon-yyyy hh24:mi:ss')
||'^'|| T1.MESSAGE_TEXT
from
( select
rownumrownumber, substr(message_text,1,3950) message_text
,module,log_level, timestamp
from fnd_log_messages
where user_id = <USER_ID>
and session_id = <SESSION_ID>
order by timestamp asc
) T1;

spool off

If there are no Self service log messages returned, please run the following

select
rownumrownumber, log_level, substr(message_text,1,3950) message_text, timestamp,module
from fnd_log_messages
where user_id = <USER_ID>
and session_id = <SESSION_ID>
and module like '%selfservice%'
order by timestamp asc

Enabling Audit in Database.

Setting up or enabling the standard audit trail is quite easy and is outlined in the 2-Day+ Security Guide as follows:

1. Start Database Control

2. Log in as SYS with SYSDBA privileges

3. Click Server to display the Server subpage

4. Click Initialization Parameters in the Database Configuration section

5. Click SPFile to display the SPFile subpage. If you don’t use anSPFile just continue to the next step

6. Enter audit_trail in the Name field to find the AUDIT_TRAIL parameter and then click Go

7. Enter the type of auditing you want in the Value field where value can be:

DB – Enables Database Auditing where records will primarily be written to the sys.aud$

OS – Enables auditing records to be written to the operating system where you must also specify AUDIT_FILE_DEST which tells Oracle where to write the audit record.

NONE – Will disable standard auditing

DB, EXTENDED – does all that the type of DB does, plus populating the SQL bind and SQL text CLOB-type columns of the sys.aud$ table when available

XML – will write to the operating system audit records in XML format

EXTENDED – will write to the operating system audit records in XML format but also populates the SQL bind and SQL text CLOB-types columns of the sys.aud$ table when available

8. Click Apply

9. Restart the Oracle instance

While setting up standard auditing from the control panel is quite acceptable, this is one of the tasks that can also easily be accomplished through the standard PL*SQL interface.

1. Log in as SYS with SYSDBA privileges

Sqlplus / as sysdba

2. Check the current settings

SQL> show parameter audit

NAME TYPE VALUE

---------------------- ----------- ------------------------------

audit_file_dest string /opt/app/oracle/admin/db11/adump

audit_sys_operationsboolean FALSE

audit_syslog_level string

audit_trail string DB

3. Set the type of auditing you want by setting the audit_trail parameter

SQL> alter system set audit_trail=OS scope=spfile;

System altered.

4. Set the auditing destination

SQL> alter system set audit_file_dest='/opt/app/oracle/admin/db11/adump' scope=spfile;

System altered.

5. Restart the Oracle instance

SQL> SHUTDOWN

SQL> STARTUP

Also note that there are two additional parameters audit_sys_operations and audit_syslog_level that you should consider setting if you are concerned about the SYS account activity.

1. audit_sys_operations - this initialization parameter tells Oracle to turn on auditing of the SYS connections, and users connecting with the SYSDBA or SYSOPER privilege. It has either a TRUE or FALSE value

2. audit_syslog_level – this initialization parameter enables SYS and standard OS auditing records to be written to the system using the SYSLOG utility

Now that we’ve enables operating system auditing, it is always nice to see exactly what we’ve accomplished. While this is not an exhaustive example, it does touch the surface of what we are trying to accomplish here. Suppose now that we have an un-authorized access attempt (failed login) to our database through the use of the SCOTT/TIGER account.

- Advertisement -

1. we’ve locked this account and any attempts will be now be met with ‘the account is locked’ message:

[oracle@ludwigadump]$ sqlplusscott/tiger

SQL*Plus: Release 11.1.0.6.0 - Production on Thu Dec 10 06:51:43 2009

ERROR:

ORA-28000: the account is locked

2. And now, because of auditing, this attempt will not go unnoticed and will be reported in the audit_file_dest location:

[oracle@ludwig ~]$ cd $ORACLE_HOME/adump

[oracle@ludwigadump]$ more ora_3817.aud

Audit file /opt/app/oracle/admin/db11/adump/ora_3817.aud

Oracle Database 11g Enterprise Edition Release 11.1.0.6.0 - Production

With the Partitioning, OLAP, Data Mining and Real Application Testing options

ORACLE_HOME = /opt/app/oracle/product/11.1.0/db_1

System name: Linux

Node name: ludwig

Release: 2.6.18-8.el5

Version: #1 SMP Thu Mar 15 19:57:35 EDT 2007

Machine: i686

Instance name: db11

Redo thread mounted by this instance: 1

Oracle process number: 18

Unix process pid: 3817, image: oracle@ludwig (TNS V1-V3)

Thu Dec 10 06:48:46 2009

SESSIONID: "280057" ENTRYID: "1" STATEMENT: "1" USERID: "SCOTT" USERHOST: "ludwig" TERMINAL: "pts/1" ACTION: "100"

RETURNCODE: "28000" COMMENT$TEXT: "Authenticated by: DATABASE" OS$USERID: "oracle"

Now that you have the settings changed, you can start monitoring the activity on the SYS account. Remember standard auditing can monitor and record various user database actions such as SQL statements, privileges, schemas, objects, and network and multitier activity. Now is the time to dig in, see how far standard auditing can take you to gain compliancy and then fill in the gaps. The issue becomes whether you can provide auditors everything they need to pass your audit. If you can monitor all database traffic and take appropriate action then you will pass, otherwise you are in for a lot of work. But more on that latter.

Database Audit and Audit trail purging

DBMS_AUDIT_MGMT.

There are several reason to enable database audit and at least as much reason to not enable database audit.

Enable Audit

Ok, first of all we have to set the corresponding init.ora parameter and enable the database audit. In my case I’ll also enable audit of all sys operation. This is not necessary when you plan to use standard audit. I just did it because I restarted the database anyway. ok lame excuse, I will come back again later on.

Set the init.ora parameter:

ALTER system SET audit_sys_operations=TRUE scope=spfile;

ALTER system SET audit_trail=db_extended scope=spfile;

startup force;

SHOW parameter audit

Initialize the audit infrastructure. In this example I’ve initialized the standard audit and set a default interval of 10 days.

BEGIN
DBMS_AUDIT_MGMT.INIT_CLEANUP(
AUDIT_TRAIL_TYPE => DBMS_AUDIT_MGMT.AUDIT_TRAIL_AUD_STD,
DEFAULT_CLEANUP_INTERVAL => 240 /*hours*/
);
END;
/

commit;

Create a dedicated tablespace for the audit data and change the location of the audit trail. If this is not done AUD$ will remain in the SYSAUX tablespace.

CREATE tablespaceaudit_datadatafile '/u01/oradata/TDB03/audit01TDB03.dbf'
SIZE 100M autoextend ON NEXT 50M maxsize 5G;

BEGIN
DBMS_AUDIT_MGMT.SET_AUDIT_TRAIL_LOCATION(
AUDIT_TRAIL_TYPE => DBMS_AUDIT_MGMT.AUDIT_TRAIL_AUD_STD,
AUDIT_TRAIL_LOCATION_VALUE => 'AUDIT_DATA'
);
END;
/

commit;

Review the audit settings

col PARAMETER_NAME FOR a30
col PARAMETER_VALUE FOR a15
col AUDIT_TRAIL FOR a20
SELECT PARAMETER_NAME, PARAMETER_VALUE, AUDIT_TRAIL
FROM DBA_AUDIT_MGMT_CONFIG_PARAMS
WHERE audit_trail = 'STANDARD AUDIT TRAIL';

PARAMETER_NAME PARAMETER_VALUE AUDIT_TRAIL
------------------------------ --------------- --------------------
DEFAULT CLEAN UP INTERVAL 12 STANDARD AUDIT TRAIL
DB AUDIT TABLESPACE AUDIT_DATA STANDARD AUDIT TRAIL
DB AUDIT CLEAN BATCH SIZE 10000 STANDARD AUDIT TRAIL

col segment_name FOR a10
SELECT owner,segment_name,tablespace_name FROM dba_segments WHERE segment_name ='AUD$';

OWNER SEGMENT_NA TABLESPACE_NAME
------------------------------ ---------- ------------------------------
SYS AUD$ AUDIT_DATA

Ok, the audit infrastructure has been setup and configured. Now lets enable audit for certain system privilege and objects. The first part of the following audit statements have been taken from $ORACLE_HOME/rdbms/admin/secconf.sql. This script is used in 11g to enable audit during database creation.

audit ALTER any TABLE BY access;
audit CREATE any TABLE BY access;
audit DROP any TABLE BY access;
audit CREATE any PROCEDURE BY access;
audit DROP any PROCEDURE BY access;
audit ALTER any PROCEDURE BY access;
audit GRANT any privilege BY access;
audit GRANT any object privilege BY access;
audit GRANT any ROLE BY access;
audit audit system BY access;
audit CREATE external job BY access;
audit CREATE any job BY access;
audit CREATE any library BY access;
audit CREATE public DATABASE link BY access;
audit exempt access policy BY access;
audit ALTER USER BY access;
audit CREATE USER BY access;
audit ROLE BY access;
audit CREATE SESSION BY access;
audit DROP USER BY access;
audit ALTER DATABASE BY access;
audit ALTER system BY access;
audit ALTER profile BY access;
audit DROP profile BY access;
audit DATABASE link BY access;
audit system audit BY access;
audit profile BY access;
audit public synonym BY access;
audit system GRANT BY access;

audit DELETE ON sys.aud$;
audit ALTER ON DEFAULT;
audit GRANT ON DEFAULT;

There are a few data dictionary views to review which object and system privilege has audit enabled.

SELECT  * FROM DBA_STMT_AUDIT_OPTS;

USER_NAME PROXY_NAME AUDIT_OPTION SUCCESS FAILURE
---------- ---------- ---------------------------- ---------- ----------
  ALTER SYSTEM   BY ACCESS BY ACCESS
SYSTEM AUDIT   BY ACCESS BY ACCESS
  CREATE SESSION     BY ACCESS BY ACCESS
  CREATE USER   BY ACCESS BY ACCESS
  ALTER USER     BY ACCESS BY ACCESS
  DROP USER   BY ACCESS BY ACCESS
PUBLIC SYNONYM   BY ACCESS BY ACCESS
  DATABASE LINK BY ACCESS BY ACCESS
  ROLE     BY ACCESS BY ACCESS
PROFILE BY ACCESS BY ACCESS
  CREATE ANY TABLE     BY ACCESS BY ACCESS
  ALTER ANY TABLE   BY ACCESS BY ACCESS
  DROP ANY TABLE     BY ACCESS BY ACCESS
  GRANT TABLE   BY ACCESS BY ACCESS
  CREATE PUBLIC DATABASE LINK BY ACCESS BY ACCESS
  GRANT ANY ROLE     BY ACCESS BY ACCESS
SYSTEM GRANT     BY ACCESS BY ACCESS
  ALTER DATABASE     BY ACCESS BY ACCESS
  CREATE ANY PROCEDURE     BY ACCESS BY ACCESS
  ALTER ANY PROCEDURE   BY ACCESS BY ACCESS
  DROP ANY PROCEDURE     BY ACCESS BY ACCESS
  ALTER PROFILE BY ACCESS BY ACCESS
  DROP PROFILE   BY ACCESS BY ACCESS
  GRANT ANY PRIVILEGE BY ACCESS BY ACCESS
  CREATE ANY LIBRARY   BY ACCESS BY ACCESS
EXEMPT ACCESS POLICY   BY ACCESS BY ACCESS
  GRANT ANY OBJECT PRIVILEGE   BY ACCESS BY ACCESS
  CREATE ANY JOB   BY ACCESS BY ACCESS
  CREATE EXTERNAL JOB BY ACCESS BY ACCESS

SELECT * FROM DBA_PRIV_AUDIT_OPTS;

USER_NAME PROXY_NAME PRIVILEGE SUCCESS FAILURE
---------- ---------- ---------------------------- ---------- ----------
  CREATE EXTERNAL JOB BY ACCESS BY ACCESS
  CREATE ANY JOB   BY ACCESS BY ACCESS
  GRANT ANY OBJECT PRIVILEGE   BY ACCESS BY ACCESS
EXEMPT ACCESS POLICY   BY ACCESS BY ACCESS
  CREATE ANY LIBRARY   BY ACCESS BY ACCESS
  GRANT ANY PRIVILEGE BY ACCESS BY ACCESS
  DROP PROFILE   BY ACCESS BY ACCESS
  ALTER PROFILE BY ACCESS BY ACCESS
  DROP ANY PROCEDURE     BY ACCESS BY ACCESS
  ALTER ANY PROCEDURE   BY ACCESS BY ACCESS
  CREATE ANY PROCEDURE     BY ACCESS BY ACCESS
  ALTER DATABASE     BY ACCESS BY ACCESS
  GRANT ANY ROLE     BY ACCESS BY ACCESS
  CREATE PUBLIC DATABASE LINK BY ACCESS BY ACCESS
  DROP ANY TABLE     BY ACCESS BY ACCESS
  ALTER ANY TABLE   BY ACCESS BY ACCESS
  CREATE ANY TABLE     BY ACCESS BY ACCESS
  DROP USER   BY ACCESS BY ACCESS
  ALTER USER     BY ACCESS BY ACCESS
  CREATE USER   BY ACCESS BY ACCESS
  CREATE SESSION     BY ACCESS BY ACCESS
AUDIT SYSTEM   BY ACCESS BY ACCESS
  ALTER SYSTEM   BY ACCESS BY ACCESS

SELECT * FROM DBA_OBJ_AUDIT_OPTS;

OWNER OBJECT_NAME OBJECT_TYPE ALT AUD COM DEL GRA IND INS LOC REN SEL UPD REF EXE CRE REA WRI FBK
----- -------------------- ----------- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
SYS AUD$   TABLE     -/- -/- -/- S/S -/- -/- -/- -/- -/- -/- -/- -/- -/- -/- -/- -/- -/-
SYS VERIFY_FUNCTION PROCEDURE   -/- -/- -/- -/- S/S -/- -/- -/- -/- -/- -/- -/- -/- -/- -/- -/- -/-
SYS VERIFY_FUNCTION_11G PROCEDURE   -/- -/- -/- -/- S/S -/- -/- -/- -/- -/- -/- -/- -/- -/- -/- -/- -/-

SELECT * FROM ALL_DEF_AUDIT_OPTS;

ALT AUD COM DEL GRA IND INS LOC REN SEL UPD REF EXE FBK REA
--- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
S/S -/- -/- -/- S/S -/- -/- -/- -/- -/- -/- -/- -/- -/- -/-

Audit trail housekeeping

So far we’ve spend quite some time on setting up the audit. Let’s come to the actual part of the post, the housekeeping. The plan is to have regular database job, which purge the audit data as required. For this I defined the following steps:

Create a report of your audit trail (optional)

Export your audit trail information for longterm archiving (optional)

Set the archive timestamp as soon as audit data has been archived

Purge archived audit data

I the current example I’ll skip the first to steps.

Create daily archive timestamp job. This job will be a regular dbms_scheduler job.

BEGIN
DBMS_SCHEDULER.CREATE_JOB (
job_name   => 'DAILY_AUDIT_ARCHIVE_TIMESTAMP',
job_type   => 'PLSQL_BLOCK',
job_action => 'BEGIN DBMS_AUDIT_MGMT.SET_LAST_ARCHIVE_TIMESTAMP(AUDIT_TRAIL_TYPE =>
DBMS_AUDIT_MGMT.AUDIT_TRAIL_AUD_STD,LAST_ARCHIVE_TIME => sysdate-10); END;',
start_date => sysdate,
repeat_interval => 'FREQ=HOURLY;INTERVAL=24',
enabled =>  TRUE,
comments   => 'Create an archive timestamp'
  );
END;
/

Create daily purge job

BEGIN
DBMS_AUDIT_MGMT.CREATE_PURGE_JOB(
AUDIT_TRAIL_TYPE   => DBMS_AUDIT_MGMT.AUDIT_TRAIL_AUD_STD,
AUDIT_TRAIL_PURGE_INTERVAL => 24 /* hours */,
AUDIT_TRAIL_PURGE_NAME   => 'Daily_Audit_Purge_Job',
USE_LAST_ARCH_TIMESTAMP => TRUE
  );
END;
/

commit;

The defined AUDIT JOB’s are then visible in DBA_AUDIT_MGMT_CLEANUP_JOBS.

col JOB_NAME FOR a30
col JOB_FREQUENCY FOR a40
SELECT JOB_NAME,JOB_STATUS,AUDIT_TRAIL,JOB_FREQUENCY FROM DBA_AUDIT_MGMT_CLEANUP_JOBS;

JOB_NAME JOB_STAT AUDIT_TRAIL JOB_FREQUENCY
---------------------- -------- -------------------- ------------------------
DAILY_AUDIT_PURGE_JOB ENABLED STANDARD AUDIT TRAIL FREQ=HOURLY;INTERVAL=24

As we can see in dba_scheduler_jobs, DBMS_SCHEDULER.CREATE_JOB is just creating a other scheduler job.

col next_run_date FOR a50
SELECT job_name, next_run_date, state, enabled FROM dba_scheduler_jobs WHERE job_name LIKE '%AUDIT%';

JOB_NAME NEXT_RUN_DATE STATE ENABL
------------------------------ -------------------------------------------------- --------------- -----
DAILY_AUDIT_ARCHIVE_TIMESTAMP 31-MAY-11 01.46.58.000000 PM +02:00 SCHEDULED TRUE
DAILY_AUDIT_PURGE_JOB 31-MAY-11 01.49.34.900000 PM EUROPE/VIENNA SCHEDULED TRUE

Oracle APPS DBA pieces

Pages

Sunday, January 22, 2017

Auditing in EBS(Though Old but still Gold)

Enable Audit

Traffic
